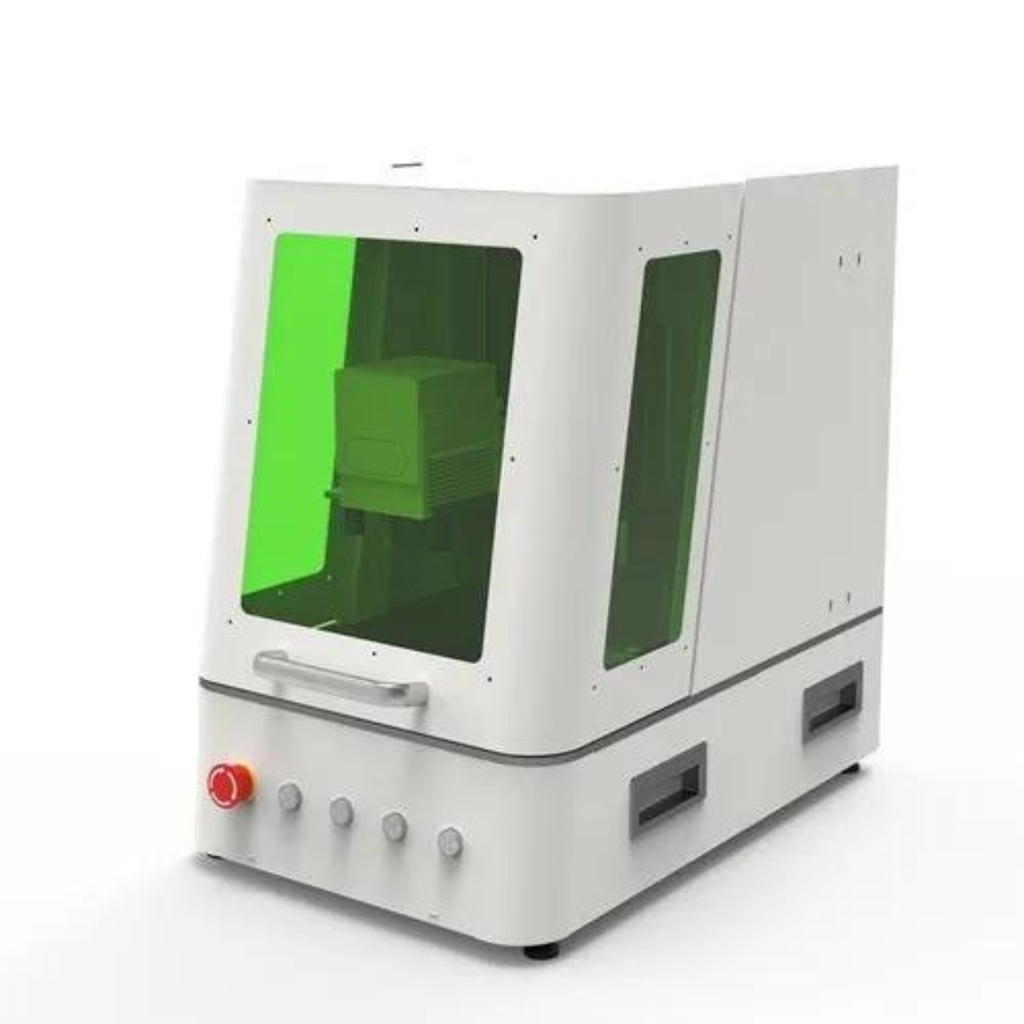

LM6 Pro 50W Fiber Laser Cutting Machine - Enclosed - Euro
Technology:
Laser power 50W - High Speed and specially designed Laser source can provide better finishing and cutting quality when compared to normal Laser systems.
Fiber laser marking with Deep engraving and Cutting Function.
Laser source that uses a direct electrical modulation semiconductor laser as a seed source (MOPA) solution.
It has perfect laser characteristics and good pulse shape control ability.
Compared with Q-switched fiber lasers, the master oscillator power amplifier (MOPA) laser technology have more flexibility, can achieve lower and higher frequencies, and have a smaller opening delay.
Design:
European Design for Sleek and Stylish look.
Occupies small space, but delivers high power and superior finish to your samples.
Reduces gold losses, due to its design of Laser system combined with high speed scanner and software settings.
Optional - Dust collection system available.
Safety:
With Class IV Laser safety standards, its safe for users even for long hours of operations.
Installed with Special protection for Anti Reflection of Laser for Safety of the Source.
Tech Spec:
Wavelength 1064nm
Min. character 0.3mm
Min. line width 0.06mm
Pulse Repetition Rate - 1 ~ 400 kHz
Pulse Duration 2~500ns
Beam quality(M²)<1.5
Marking scope mm 110*110mm / 70*70mm
Cooling way Air cooling
Power requirements 220V±5%/50Hz/2.5A
Power consumption <500 Watts
Optional Accessories:
Rotary for bangle and ring engraving / surface marking / cutting
Cutting stage for Perfection in cutting quality and finishing.
Auto feeding system for Mass production.
Software & Training:
Company will provide operation software and training at the time of Installation.
Customer must hire, recruit or outsource any designer or learn the designing software by themselves. Company will not provide any design files or design training or training on software like AutoCAD, Corel Draw, etc.
High quality designs and templates are available both for FREE and Paid online, Customers are advised to use the service by themselves.
